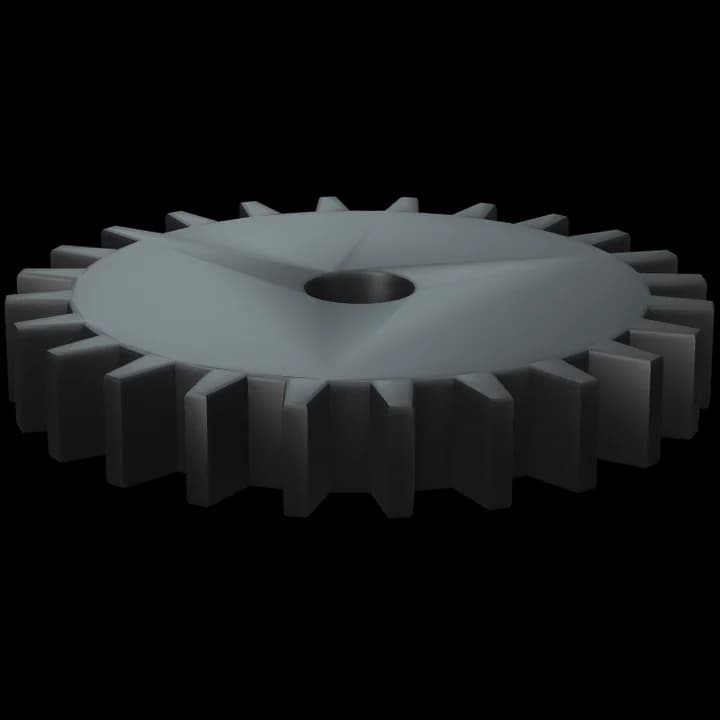

Spur gear, 24 teeth
Module 2, 24 teeth, 8 mm bore.
Rs. 590
We confirm your order on WhatsApp before printing.
52 × 52 × 8 mm
60% to 400% in steps of 20%, up to the 256 mm build volume.
About this design
A module 2 spur gear with 24 teeth: 48 mm pitch diameter, 52 mm across the tips, 8 mm thick, with an 8 mm bore. For robots, models and teaching mechanisms.
- Standard size 52 × 52 × 8 mm
- Module 2, 24 teeth
- 48 mm pitch diameter
- 8 mm bore, 8 mm thick
Everything scales together: at 100% it is module 2 with an 8 mm bore. Keep 100% to mesh with other module 2 gears.
- Print time
- About 22 min each
- Weight
- About 8 g each
- Layer height
- 0.20 mm
- Infill
- 15%
